Brake Rotor
›

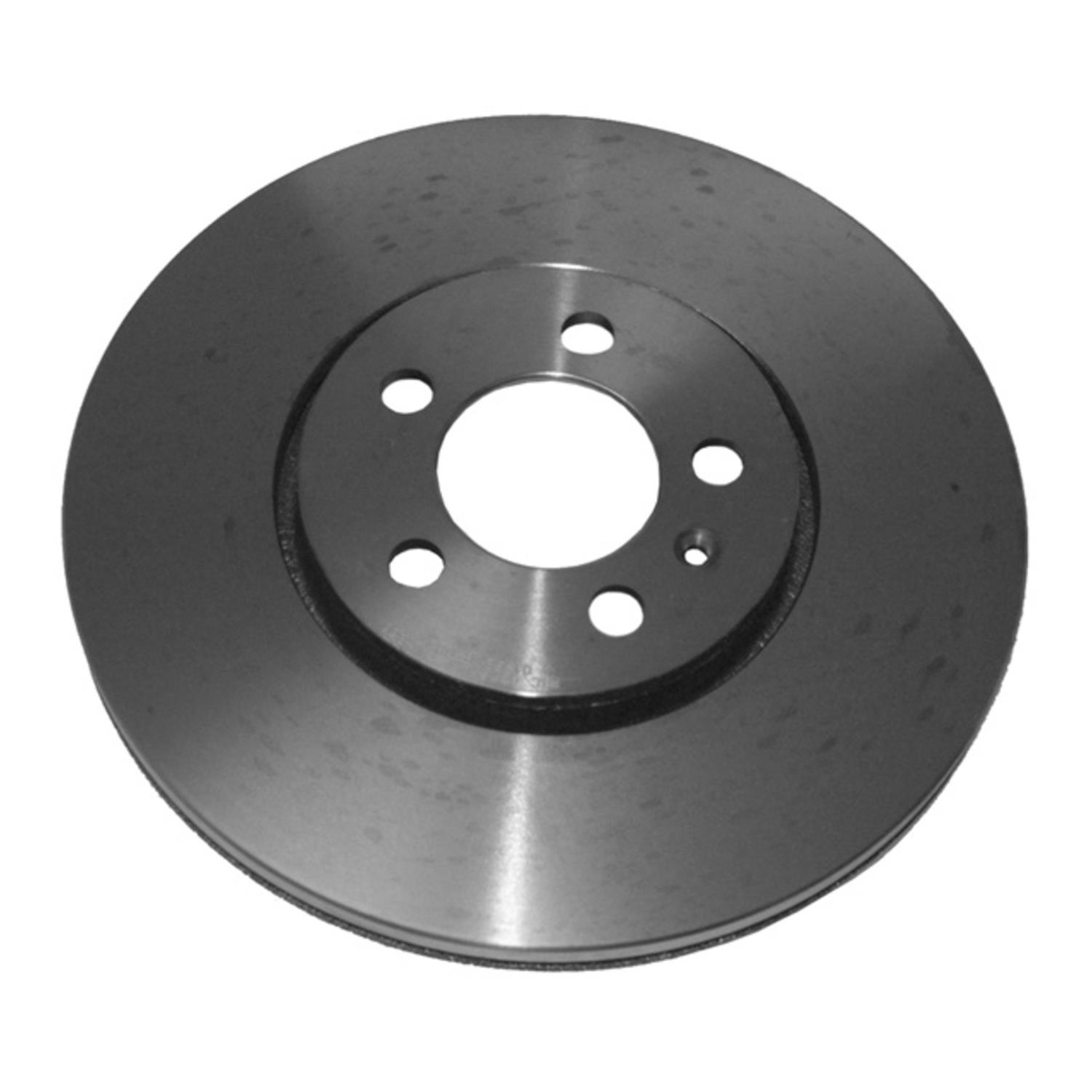

ACDelco Rear Brake Rotor

Description

ACDelco Gold (Professional) Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. They feature a thickness variation that is less than 0.0004 to minimize pedal pulsation, noise, and help to extend brake pad life. These rotors meet the SAE standard for structural integrity with OE matched G3000 qualified material delivering guaranteed performance. Also, no machining is required. ACDelco Gold (Professional) Disc Brake Rotors are ready to be installed right out of the box. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠ WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Specifications

Brand	ACDelco
Brand Part Type	ACDelco/Brake Rotor
Part Type	Brake Rotor
Part Number	18A2917
Condition	Remanufactured
Position	Rear
Mounting Bolt Hole Quantity	6
Mounting Bolt Hole Diameter	15.5
Discard Thickness	0.906
Overall Rotor Diameter (mm)	348.23mm
Bolt Circle Diameter (in)	5.3
Conventional Or Drum-In-Hat Type Rotor	Drum-In-Hat
Hat Finish	Turned
Center Bore Diameter (mm)	90.1mm
Inside Diameter	258.6
Slotted	No
Bolt Hole Quantity	6
Mounting Bolt Hole Circle Diameter	135
Solid Or Vented Type Rotor	Vented
Material	Cast Iron
Center Bore Diameter (in)	3.5in
Overall Height	79.8
Construction	Full Cast
Rust Resistant Coating	No
Bolt Circle Diameter (mm)	135
Surface Type	Smooth
Center Hole Diameter	3.55
Overall Height	3.142
Disc Finish	Coated
Pad Contact Surface Width	1.8
Directional or Non-Directional Brake Surface	No
Center Hole Diameter	90.15
Grade Type	Regular
ABS Tone Ring Included	No
Mounting Bolt Hole Diameter	0.61
Discard Thickness	23
Programming Required	No
Nominal Thickness	25
Pad Contact Surface Width	44.75
Outside Diameter	13.705
Inside Diameter	10.181
Outside Diameter	348.1
Stud/Lug Hole Quantity	6
Nominal Thickness	0.984
Mounting Bolt Hole Circle Diameter	5.315
Length	13.75
Height	79.8
Width	13.75
Weight	26.1 Pounds

This Part Also Fits These Vehicles

Shipping, Returns and Warranty Policies

Shipping Information

We've carefully selected the shipping options for each product on our site to ensure you receive the fastest, safest and most reliable delivery service possible.

Returns Information

Items shipped from www.theautopartsshop.com can be returned within 30 calendar days of receipt of shippment in most cases.

Warranty Limitations

The warranty is limited only to the original purchaser and is non-transferable.
Please click here for more details.

ACDelco® Rear Brake Rotor

Name: ACDelco Rear Brake Rotor
Brand: ACDelco
SKU: 18A2917
Price: 120.67 USD
Availability: InStock

Part Number: 18A2917

$120.67

-1+

Est.deliveryEstimate date considering time for our warehouse to process your order.:Will be shipped within -7 hours, based on zip 61354Change

Item added to cart

Will this fit your vehicle?

Add your vehicle to check compatibility

Follows original manufacturers' designs for dispersing heat, helping to prolong pad and rotor life while reducing noise and vibration
Independently tested with Noise/Vibration/Harshness (NVH) and durability/wear testing; resulting in high quality and reliable products
Inspected for balance; resulting in smooth brake operation and noise reduction
Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Premium aftermarket replacement part
